SokkiaGNSS / RTK receiver

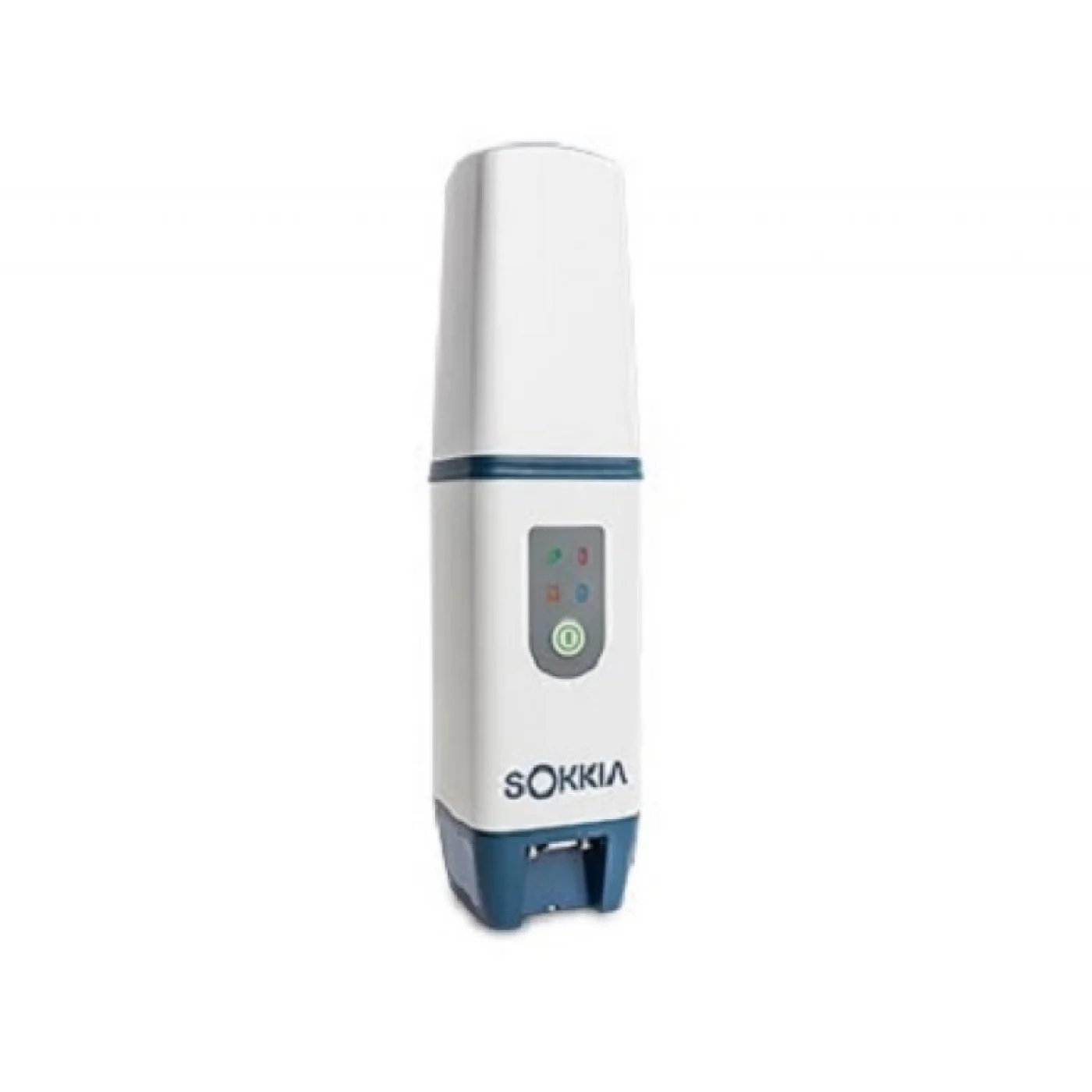

Sokkia GCX3
Sokkia GCX3 is a GNSS / RTK receiver released in 2017. Key specs: RTK accuracy (horizontal) 10 mm, satellite systems supported 5, multi-band GNSS (L1 + L5/L2), battery life 10 h.
3.9Score
Positioning2.4
Maps & navigation4.9
Battery3.0
Durability6.0
price range—
- Year
- 2017
- Brand
- Sokkia
- Popularity
- #300 of 301
10 mmRTK accuracy (horizontal)
5Satellite systems supported
YesMulti-band GNSS (L1 + L5/L2)
10 hBattery life
IPx7Water protection (IPx)
440 gWeight
8 GBInternal storage
Spec guide
How it ranks among GNSS / RTK receivers
RTK accuracy (horizontal) · 10 mmBottom 8%
Satellite systems supported · 5Top 48%
Battery life · 10 hBottom 40%
Water protection (IPx) · IPx7Bottom 43%
Weight · 440 gTop 48%
Internal storage · 8 GBBottom 23%
Compared with every model of this kind in the catalog.
compared with other GNSS / RTK receivers
Why is GCX3 a good choice?
Weight: 440 gbetter than 81% of GNSS / RTK receivers
Weak points
Water protection (IPx): IPx7worse than 93% of GNSS / RTK receivers
RTK accuracy (horizontal): 10 mmworse than 86% of GNSS / RTK receivers
Battery life: 10 hworse than 84% of GNSS / RTK receivers
Satellite systems supported: 5worse than 88% of GNSS / RTK receivers
Specifications
Full specifications
Satellite positioning
- Satellite systems supported
- 5
- Multi-band GNSS (L1 + L5/L2)
- Yes
- Frequency bands
- L1, L2, E1, B1, B2
- SBAS (WAAS / EGNOS)
- Yes
- RTK positioning
- Yes
- RTK accuracy (horizontal)
- 10 mm
Maps & navigation
- Internal storage
- 8 GB
Connectivity & safety
- Bluetooth
- Yes
Battery & power
- Battery life
- 10 h
- External power input
- Service port (shared with USB2.0 communication)
Build & durability
- Protection rating
- IP67
- Water protection (IPx)
- IPx7
- Operating temperature (min)
- -20 °C
- Weight
- 440 g
- Width
- 47 mm
- Height
- 197 mm
- Depth
- 47 mm
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
