SatLabGNSS / RTK receiver

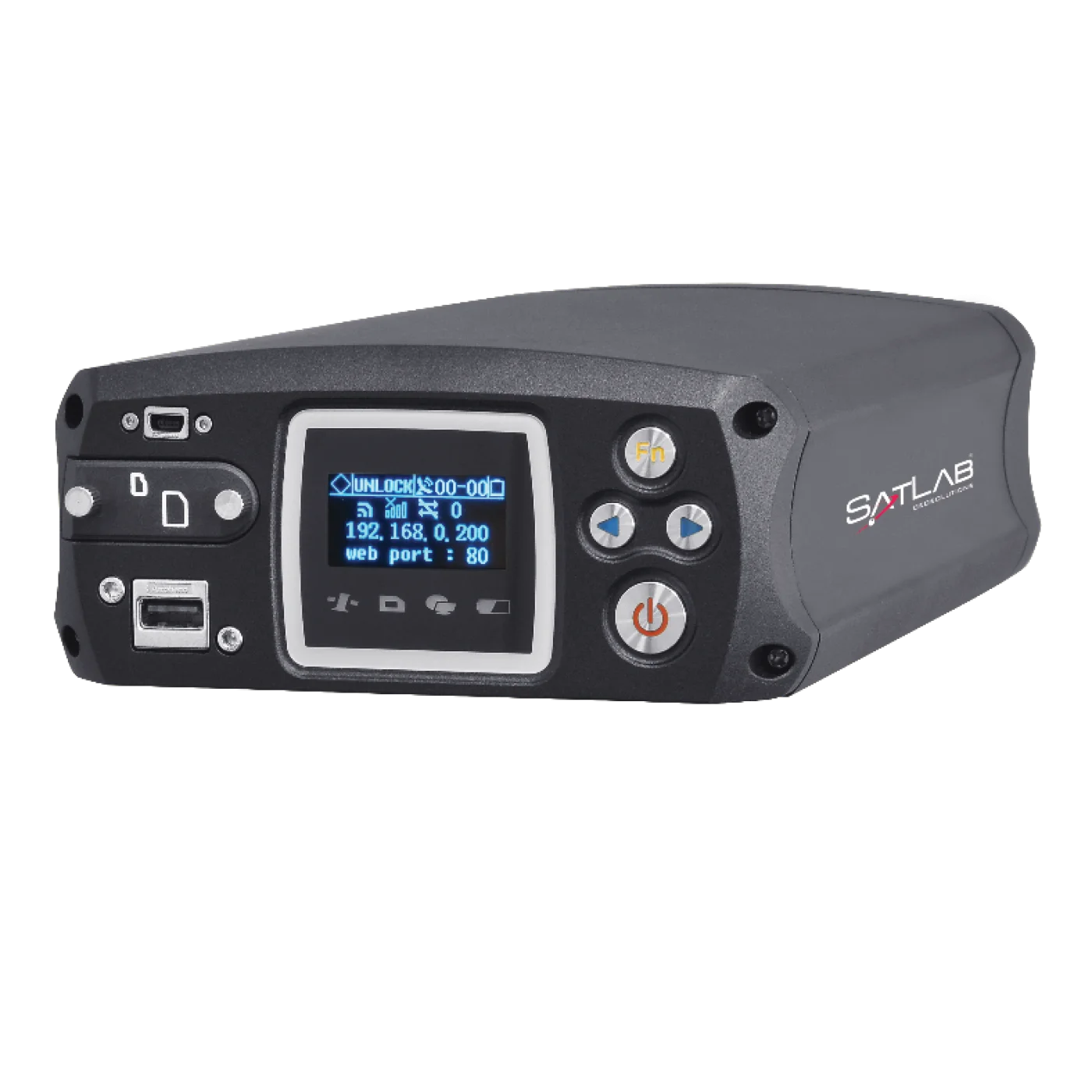

SatLab SLX-1 NG

Name: SatLab SLX-1 NG
Brand: SatLab

SatLab SLX-1 NG is a GNSS / RTK receiver released in 2018. Key specs: RTK accuracy (horizontal) 8 mm, tracking channels 555, satellite systems supported 6, multi-band GNSS (L1 + L5/L2).

9.4Score

Positioning7.6

Maps & navigation9.6

Connectivity & safety5.9

Battery9.4

Durability3.3

price range—

Full specifications

Year: 2018
Type: GNSS / RTK receiver
Brand: SatLab
Popularity: #283 of 301
Model numbers

8 mmRTK accuracy (horizontal)

555Tracking channels

6Satellite systems supported

YesMulti-band GNSS (L1 + L5/L2)

24 hBattery life

IPx7Water protection (IPx)

2,480 gWeight

62 GBInternal storage

Spec guide

How it ranks among GNSS / RTK receivers

Spec guide

RTK accuracy (horizontal) · 8 mmTop 47% Tracking channels · 555Bottom 19% Satellite systems supported · 6Top 19% Battery life · 24 hTop 16% Water protection (IPx) · IPx7Bottom 43% Weight · 2,480 gBottom 1% Internal storage · 62 GBTop 9%

Compared with every model of this kind in the catalog.

compared with other GNSS / RTK receivers

Why is SLX-1 NG a good choice?

Battery life: 24 hbetter than 95% of GNSS / RTK receivers

Internal storage: 62 GBbetter than 96% of GNSS / RTK receivers

Satellite systems supported: 6better than 70% of GNSS / RTK receivers

Weak points

Water protection (IPx): IPx7worse than 93% of GNSS / RTK receivers

Weight: 2,480 gworse than 98% of GNSS / RTK receivers

Specifications

Full specifications

Satellite positioning

Satellite systems: GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC (IRNSS)
Satellite systems supported: 6
Multi-band GNSS (L1 + L5/L2): Yes
Frequency bands: L1, L2, L5, E1, E5a, E5b, E6, B1, B2, B3
Tracking channels: 555
GNSS engine: NovAtel OEM729
SBAS (WAAS / EGNOS): Yes
RTK positioning: Yes
RTK accuracy (horizontal): 8 mm
Correction sources: NTRIP (internet), UHF radio, Cellular modem, L-band / PPP, SBAS
Built-in UHF radio: Yes
L-band / PPP corrections: Yes
