ComNavGNSS / RTK receiver

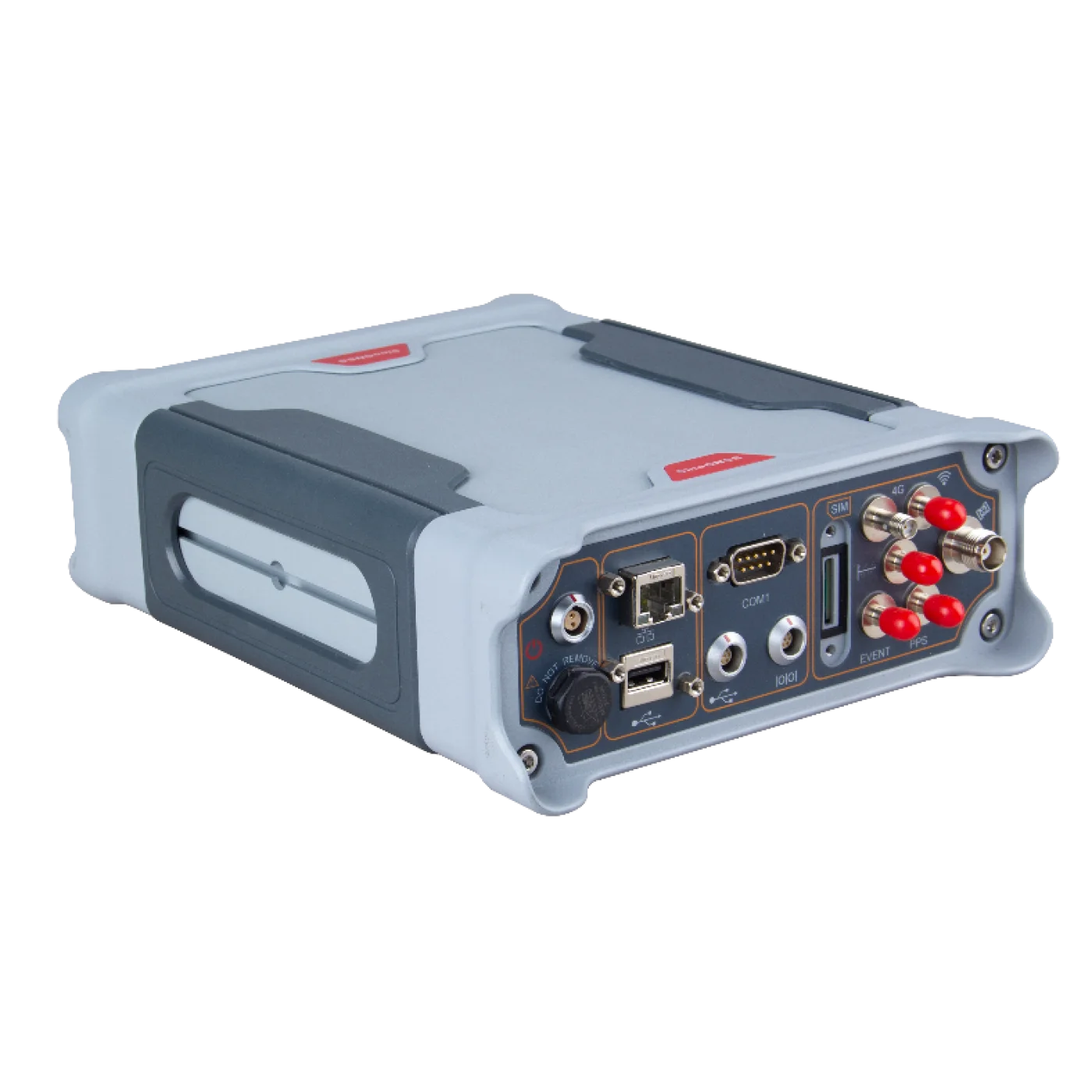

ComNav M300 Plus
ComNav M300 Plus is a GNSS / RTK receiver released in 2020. Key specs: RTK accuracy (horizontal) 8 mm, tracking channels 574, satellite systems supported 4, multi-band GNSS (L1 + L5/L2).
8.5Score
Positioning3.6
Maps & navigation9.4
Durability3.1
price range—
- Year
- 2020
- Brand
- ComNav
- Popularity
- #209 of 301
- Model numbers
- M300 Plus GNSS Receiver
8 mmRTK accuracy (horizontal)
574Tracking channels
4Satellite systems supported
YesMulti-band GNSS (L1 + L5/L2)
IPx7Water protection (IPx)
2,000 gWeight
32 GBInternal storage
Spec guide
How it ranks among GNSS / RTK receivers
RTK accuracy (horizontal) · 8 mmTop 47%
Tracking channels · 574Bottom 23%
Satellite systems supported · 4Bottom 38%
Water protection (IPx) · IPx7Bottom 43%
Weight · 2,000 gBottom 2%
Internal storage · 32 GBTop 20%
Compared with every model of this kind in the catalog.
compared with other GNSS / RTK receivers
Why is M300 Plus a good choice?
Internal storage: 32 GBbetter than 93% of GNSS / RTK receivers
Weak points
Water protection (IPx): IPx7worse than 93% of GNSS / RTK receivers
Satellite systems supported: 4worse than 97% of GNSS / RTK receivers
Weight: 2,000 gworse than 95% of GNSS / RTK receivers
In rankings
Specifications
Full specifications
Satellite positioning
- Satellite systems supported
- 4
- Multi-band GNSS (L1 + L5/L2)
- Yes
- Frequency bands
- L1, L2, L5, E1, E5a, E5b, B1, B2, B3
- Tracking channels
- 574
- SBAS (WAAS / EGNOS)
- Yes
- RTK positioning
- Yes
- RTK accuracy (horizontal)
- 8 mm
- Static accuracy (horizontal)
- 2.5 mm
- L-band / PPP corrections
- Yes
- Raw data logging (RINEX)
- Yes
Maps & navigation
- Internal storage
- 32 GB
Connectivity & safety
- Cellular modem (4G / LTE)
- Yes
Build & durability
- Protection rating
- IP67
- Water protection (IPx)
- IPx7
- Drop resistance
- 1 m
- Operating temperature (min)
- -40 °C
- Operating temperature (max)
- 80 °C
- Weight
- 2,000 g
- Width
- 176 mm
- Height
- 67 mm
- Depth
- 225 mm
- Housing material
- Magnesium-aluminium
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
