SingularXYZGNSS / RTK receiver

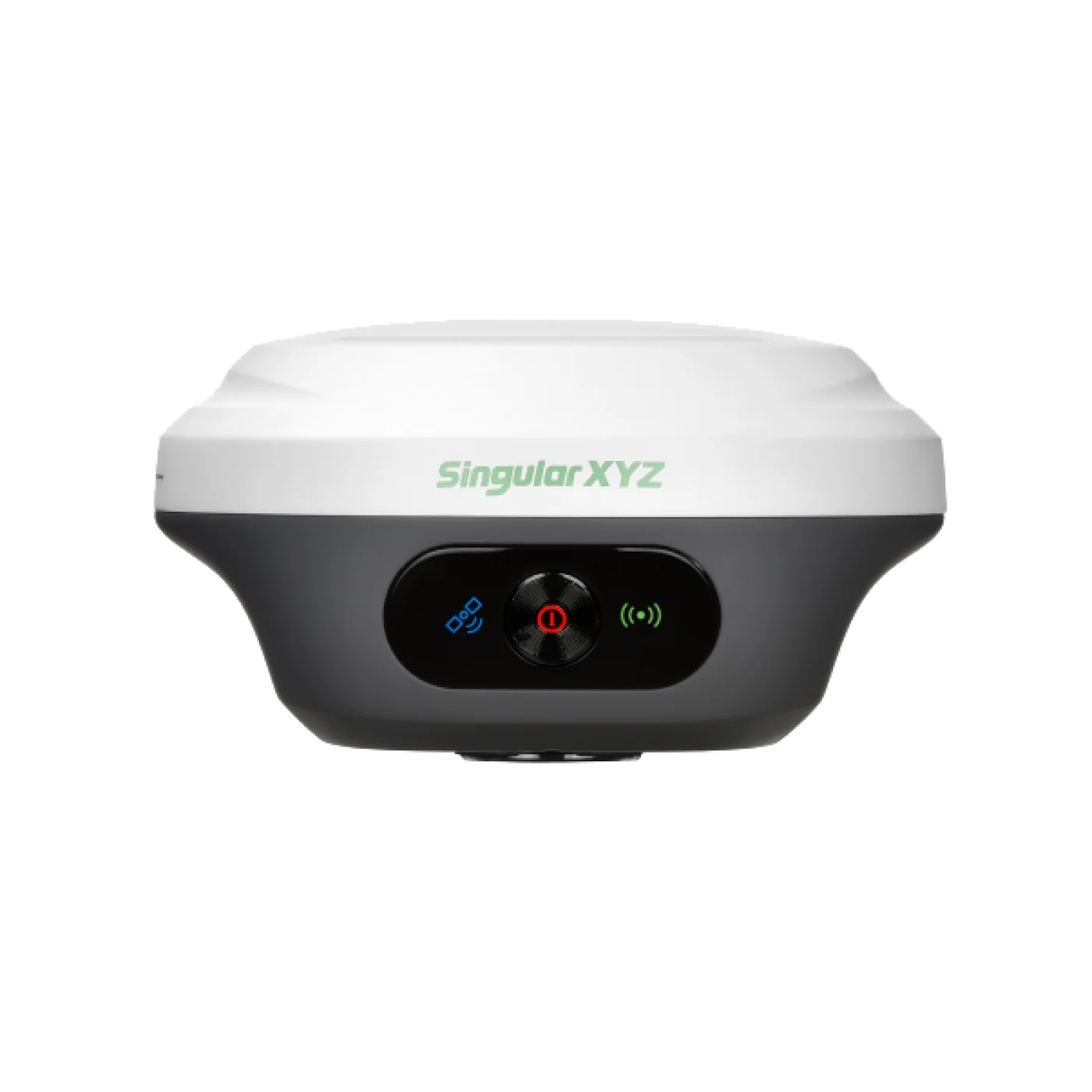

SingularXYZ Orion ONE

Name: SingularXYZ Orion ONE
Brand: SingularXYZ

SingularXYZ Orion ONE is a GNSS / RTK receiver released in 2024. Key specs: RTK accuracy (horizontal) 8 mm, tracking channels 1,408, tilt compensation (IMU), satellite systems supported 6.

6.3Score

Positioning8.1

Maps & navigation4.9

Connectivity & safety5.9

Battery4.8

Durability7.2

price range—

Full specifications

Year: 2024
Type: GNSS / RTK receiver
Brand: SingularXYZ
Popularity: #128 of 301
Model numbers: Orion ONE GNSS Receiver

8 mmRTK accuracy (horizontal)

1,408Tracking channels

YesTilt compensation (IMU)

6Satellite systems supported

YesMulti-band GNSS (L1 + L5/L2)

12 hBattery life

IPx7Water protection (IPx)

547 gWeight

8 GBInternal storage

Spec guide

How it ranks among GNSS / RTK receivers

Spec guide

RTK accuracy (horizontal) · 8 mmTop 47% Tracking channels · 1,408Top 33% Satellite systems supported · 6Top 16% Battery life · 12 hBottom 49% Water protection (IPx) · IPx7Bottom 43% Weight · 547 gBottom 49% Internal storage · 8 GBBottom 23%

Compared with every model of this kind in the catalog.

compared with other GNSS / RTK receivers

Why is Orion ONE a good choice?

Weight: 547 gbetter than 75% of GNSS / RTK receivers

Satellite systems supported: 6better than 70% of GNSS / RTK receivers

Weak points

Water protection (IPx): IPx7worse than 93% of GNSS / RTK receivers

In rankings

#29Best RTK positioning performance #9Best SingularXYZ GPS & navigation #19Best GPS & navigation of 2024

Specifications

Full specifications

Satellite positioning

Satellite systems: GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC (IRNSS)
Satellite systems supported: 6
Multi-band GNSS (L1 + L5/L2): Yes
Frequency bands: L1, L2, L5, E1, E5a, E5b, E6, B1, B2, B3
Tracking channels: 1,408
SBAS (WAAS / EGNOS): Yes
RTK positioning: Yes
RTK accuracy (horizontal): 8 mm
RTK accuracy (vertical): 15 mm
Static accuracy (horizontal): 2.5 mm
Tilt compensation (IMU): Yes
Max. tilt angle: 60°
Correction sources: NTRIP (internet), UHF radio, LoRa radio, L-band / PPP, SBAS
Built-in UHF radio: Yes
L-band / PPP corrections: Yes
Raw data logging (RINEX): Yes
