JuniperGNSS / RTK receiver

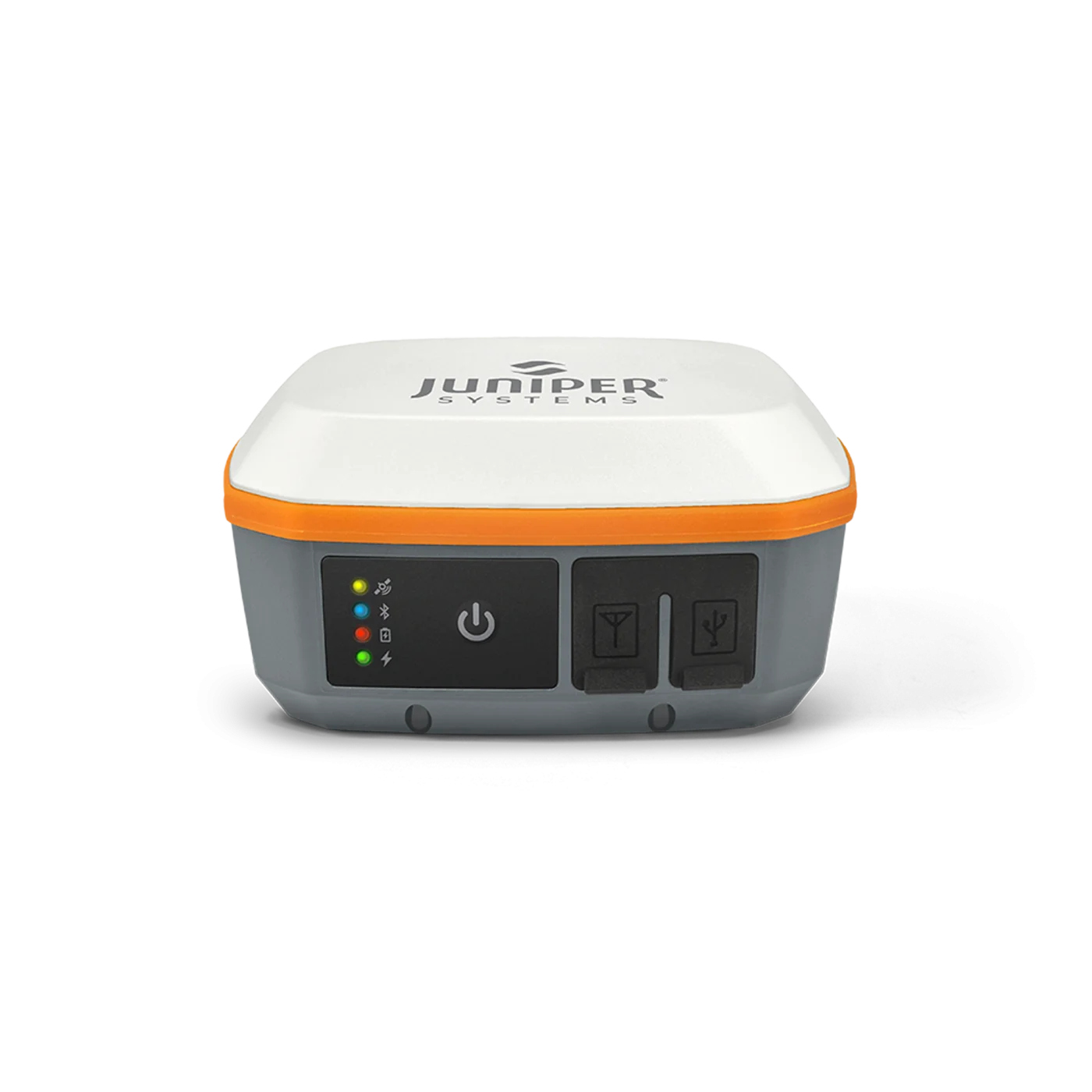

Juniper Geode GNS3H

Name: Juniper Geode GNS3H
Brand: Juniper

Juniper Geode GNS3H is a GNSS / RTK receiver released in 2025. Key specs: RTK accuracy (horizontal) 8 mm, tracking channels 800, satellite systems supported 2, multi-band GNSS (L1 + L5/L2).

6.6Score

Positioning2.6

Connectivity & safety5.9

Battery5.4

Durability8.0

price range—

Full specifications

Year: 2025
Type: GNSS / RTK receiver
Brand: Juniper
Popularity: #113 of 301

8 mmRTK accuracy (horizontal)

800Tracking channels

2Satellite systems supported

YesMulti-band GNSS (L1 + L5/L2)

12 hBattery life

IPx8Water protection (IPx)

405 gWeight

Spec guide

How it ranks among GNSS / RTK receivers

Spec guide

RTK accuracy (horizontal) · 8 mmTop 47% Tracking channels · 800Bottom 32% Satellite systems supported · 2Bottom 11% Battery life · 12 hBottom 25% Water protection (IPx) · IPx8Top 15% Weight · 405 gTop 31%

Compared with every model of this kind in the catalog.

compared with other GNSS / RTK receivers

Why is Geode GNS3H a good choice?

Water protection (IPx): IPx8better than 85% of GNSS / RTK receivers

Weight: 405 gbetter than 84% of GNSS / RTK receivers

Weak points

Satellite systems supported: 2worse than 100% of GNSS / RTK receivers

In rankings

#29Most accurate RTK receivers #17Most waterproof GPS devices #19Lightest GNSS receivers

Specifications

Full specifications

Satellite positioning

Satellite systems: QZSS, NavIC (IRNSS)
Satellite systems supported: 2
Multi-band GNSS (L1 + L5/L2): Yes
Frequency bands: L1, L2, L5, E5a, E5b, E6, B1, B2, B3
Tracking channels: 800
SBAS (WAAS / EGNOS): Yes
RTK positioning: Yes
RTK accuracy (horizontal): 8 mm
RTK accuracy (vertical): 15 mm
Correction sources: NTRIP (internet), L-band / PPP, SBAS
Built-in UHF radio: No
L-band / PPP corrections: Yes

Connectivity & safety

Bluetooth: Yes
USB-C: Yes

Battery & power

Battery life: 12 h
Battery capacity: 6,000 mAh
External power input: Input Voltage: 5VDC @ 2A USB

Build & durability

Protection rating: IP68
Water protection (IPx): IPx8
MIL-STD-810: Yes
Operating temperature (min): -20 °C
Operating temperature (max): 60 °C
Weight: 405 g
Width: 110 mm
Height: 57 mm
Depth: 110 mm
Housing material: Polymer

Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.

Compare

Compare Geode GNS3H with

All alternatives

Juniper Geode GNS3HvseSurvey eBase 30 6.66.8

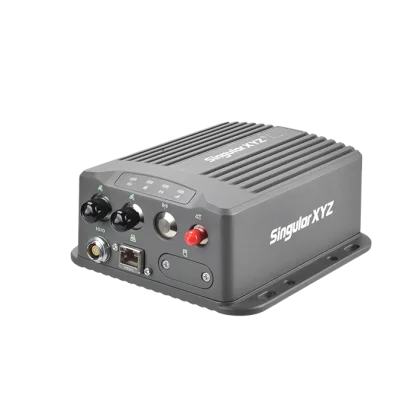

Juniper Geode GNS3HvsSingularXYZ SV100 INS-D 6.66.0
