- Geode GNS3H vs Z1 Lite

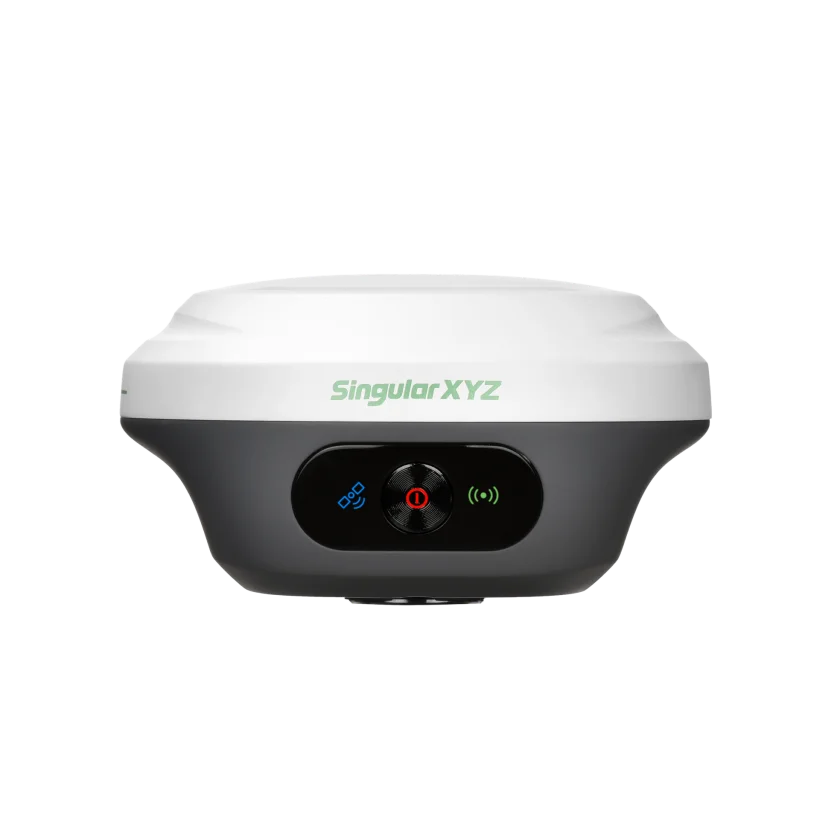

Juniper Geode GNS3H vs SingularXYZ Z1 Lite
What Geode GNS3H does better (3) and where Z1 Lite wins (5) — every spec side by side.
vs
2.6Positioning2.4
5.9Connectivity & safety5.9
5.4Battery6.8
8.0Durability7.2
Dimensions
Size comparison
Geode GNS3HZ1 Lite
| Geode GNS3H | Z1 Lite | Difference | |
|---|---|---|---|
| Height | 57 mm | 59 mm | −2 mm |
| Width | 110 mm | 107 mm | +3 mm |
| Depth | 110 mm | 107 mm | +3 mm |
| Weight | 405 g | 547 g | −142 g |
Drawn to the same scale from the official dimensions (front and side).
Why is Geode GNS3H better than Z1 Lite?
- RTK accuracy (horizontal)8 mm vs 15 mm+88%
- Water protection (IPx)IPx8 vs IPx7+14%
- Weight405 g vs 547 g+35%
Why is Z1 Lite better than Geode GNS3H?
- Satellite systems supported2 vs 52.5×
- Battery life12 h vs 15 h+25%
- Operating temperature (min)-20 °C vs -40 °C+-50%
- Tracking channels800 vs 1,408+76%
- Operating temperature (max)60 °C vs 65 °C+8%
Specifications
Side by side
| Satellite positioning | ||
| Satellite systems | QZSS, NavIC (IRNSS) | GPS, GLONASS, Galileo, BeiDou, QZSS |
| Satellite systems supported | 2 | 5 |
| Multi-band GNSS (L1 + L5/L2) | Yes | Yes |
| Frequency bands | L1, L2, L5, E5a, E5b, E6, B1, B2, B3 | L1, L2, L5, E1, E5a, E5b, E6, B1, B2, B3 |
| Tracking channels | 800 | 1,408 |
| SBAS (WAAS / EGNOS) | Yes | Yes |
| RTK positioning | Yes | Yes |
| RTK accuracy (horizontal) | 8 mm | 15 mm |
| RTK accuracy (vertical) | 15 mm | — |
| Static accuracy (horizontal) | — | 5 mm |
| Tilt compensation (IMU) | — | Yes |
| Max. tilt angle | — | 60° |
| Correction sources | NTRIP (internet), L-band / PPP, SBAS | NTRIP (internet), L-band / PPP, SBAS |
| Built-in UHF radio | No | No |
| L-band / PPP corrections | Yes | Yes |
| Raw data logging (RINEX) | — | Yes |
| Maps & navigation | ||
| Internal storage | — | 8 GB |
| Connectivity & safety | ||
| Wi-Fi | — | Yes |
| Bluetooth | Yes | Yes |
| USB-C | Yes | Yes |
| Battery & power | ||
| Battery life | 12 h | 15 h |
| Battery capacity | 6,000 mAh | — |
| External power input | Input Voltage: 5VDC @ 2A USB | — |
| Build & durability | ||
| Protection rating | IP68 | IP67 |
| Water protection (IPx) | IPx8 | IPx7 |
| MIL-STD-810 | Yes | — |
| Drop resistance | — | 2 m |
| Operating temperature (min) | -20 °C | -40 °C |
| Operating temperature (max) | 60 °C | 65 °C |
| Weight | 405 g | 547 g |
| Width | 110 mm | 107 mm |
| Height | 57 mm | 59 mm |
| Depth | 110 mm | 107 mm |
| Housing material | Polymer | Magnesium-aluminum Alloy |
