ComNavGNSS / RTK receiver

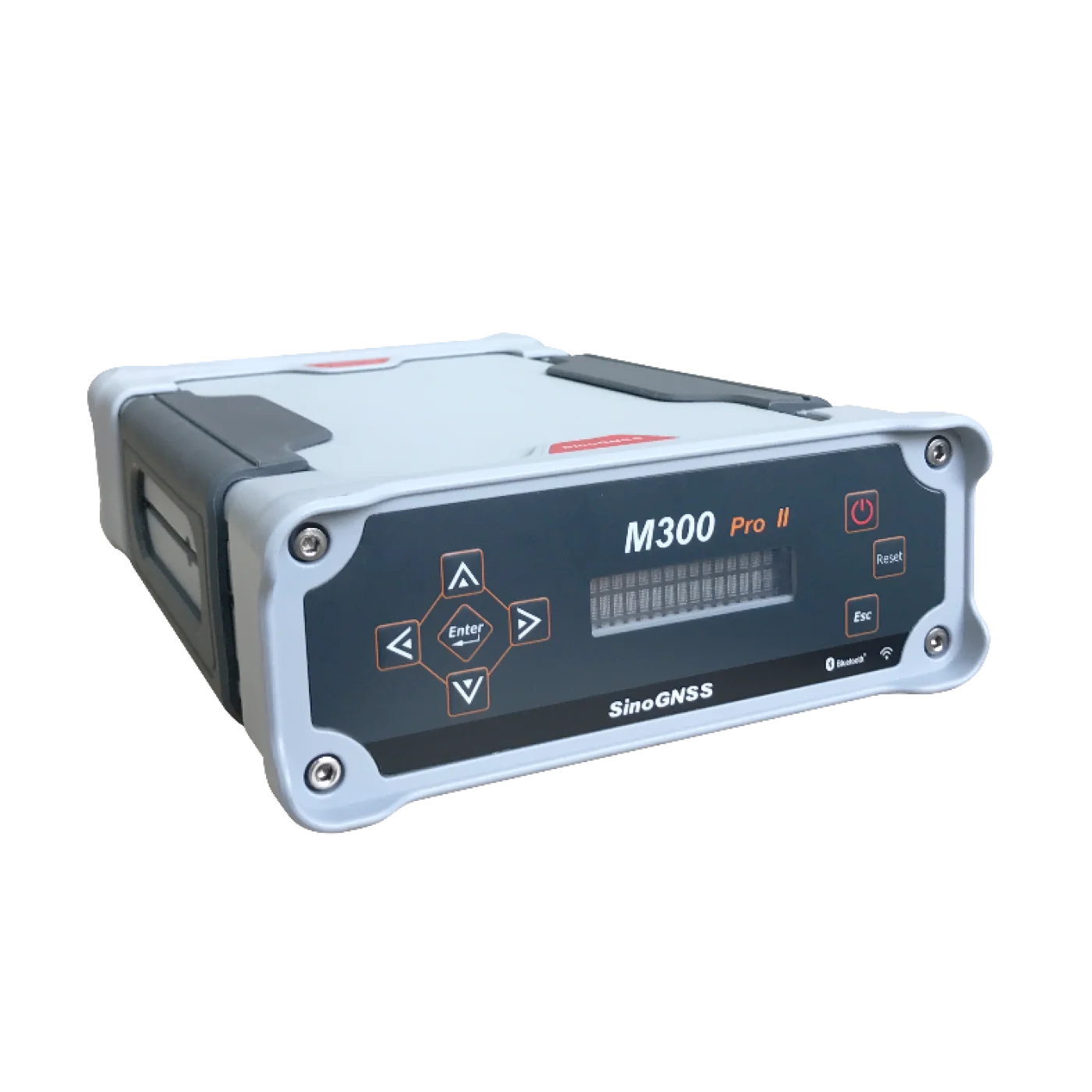

ComNav M300 Pro II
ComNav M300 Pro II is a GNSS / RTK receiver released in 2020. Key specs: RTK accuracy (horizontal) 8 mm, tracking channels 574, satellite systems supported 5, multi-band GNSS (L1 + L5/L2).
4.8Score
Positioning5.9
Connectivity & safety5.9
Durability2.7
price range—
- Year
- 2020
- Brand
- ComNav
- Popularity
- #208 of 301
- Model numbers
- M300 Pro II GNSS Receiver
8 mmRTK accuracy (horizontal)
574Tracking channels
5Satellite systems supported
YesMulti-band GNSS (L1 + L5/L2)
IPx7Water protection (IPx)
2,830 gWeight
Spec guide
How it ranks among GNSS / RTK receivers
RTK accuracy (horizontal) · 8 mmTop 47%
Tracking channels · 574Bottom 23%
Satellite systems supported · 5Top 48%
Water protection (IPx) · IPx7Bottom 43%
Weight · 2,830 gBottom 1%
Compared with every model of this kind in the catalog.
Specifications
Full specifications
Satellite positioning
- Satellite systems supported
- 5
- Multi-band GNSS (L1 + L5/L2)
- Yes
- Frequency bands
- L1, L2, L5, E1, E5a, E5b, B1, B2, B3, L-band
- Tracking channels
- 574
- SBAS (WAAS / EGNOS)
- Yes
- RTK positioning
- Yes
- RTK accuracy (horizontal)
- 8 mm
- Static accuracy (horizontal)
- 2 mm
- L-band / PPP corrections
- Yes
Connectivity & safety
- Bluetooth
- Yes
- Cellular modem (4G / LTE)
- Yes
Battery & power
- External power input
- ±18 - ±75VDC, with overvoltage protection
Build & durability
- Protection rating
- IP67
- Water protection (IPx)
- IPx7
- Operating temperature (min)
- -40 °C
- Operating temperature (max)
- 65 °C
- Weight
- 2,830 g
- Width
- 176 mm
- Height
- 67 mm
- Depth
- 267 mm
- Housing material
- Rugged aluminum case with rubber ring
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
