ComNavGNSS / RTK receiver

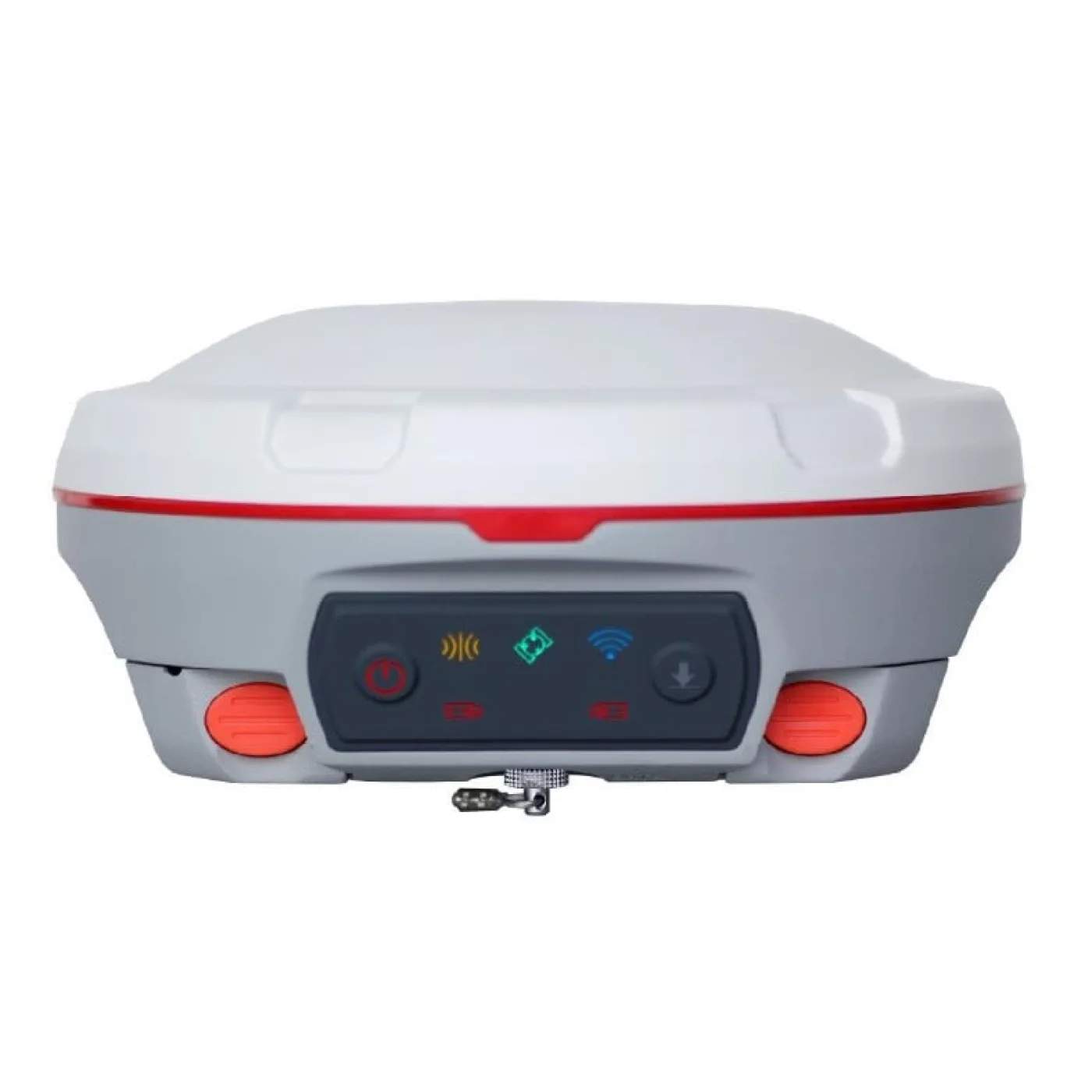

ComNav T30 IMU

Name: ComNav T30 IMU
Brand: ComNav

ComNav T30 IMU is a GNSS / RTK receiver released in 2020. Key specs: RTK accuracy (horizontal) 8 mm, tracking channels 574, tilt compensation (IMU), satellite systems supported 6.

6.2Score

Positioning6.7

Maps & navigation4.9

Connectivity & safety5.9

Battery6.3

Durability3.6

price range—

Full specifications

Year: 2020
Type: GNSS / RTK receiver
Brand: ComNav
Popularity: #211 of 301
Model numbers: T30 IMU GNSS Receiver

8 mmRTK accuracy (horizontal)

574Tracking channels

YesTilt compensation (IMU)

6Satellite systems supported

YesMulti-band GNSS (L1 + L5/L2)

15 hBattery life

IPx7Water protection (IPx)

1,200 gWeight

8 GBInternal storage

Spec guide

How it ranks among GNSS / RTK receivers

Spec guide

RTK accuracy (horizontal) · 8 mmTop 47% Tracking channels · 574Bottom 23% Satellite systems supported · 6Top 19% Battery life · 15 hTop 38% Water protection (IPx) · IPx7Bottom 43% Weight · 1,200 gBottom 10% Internal storage · 8 GBBottom 23%

Compared with every model of this kind in the catalog.

compared with other GNSS / RTK receivers

Why is T30 IMU a good choice?

Satellite systems supported: 6better than 70% of GNSS / RTK receivers

Weak points

Water protection (IPx): IPx7worse than 93% of GNSS / RTK receivers

Weight: 1,200 gworse than 80% of GNSS / RTK receivers

Specifications

Full specifications

Satellite positioning

Satellite systems: GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC (IRNSS)
Satellite systems supported: 6
Multi-band GNSS (L1 + L5/L2): Yes
Frequency bands: L1, L2, L5, E1, E5a, E5b, B1, B2, B3
Tracking channels: 574
SBAS (WAAS / EGNOS): Yes
RTK positioning: Yes
RTK accuracy (horizontal): 8 mm
Static accuracy (horizontal): 3 mm
Tilt compensation (IMU): Yes
Max. tilt angle: 60°
Correction sources: NTRIP (internet), UHF radio, Cellular modem, L-band / PPP, SBAS
Built-in UHF radio: Yes
L-band / PPP corrections: Yes
