SatLabGNSS / RTK receiver

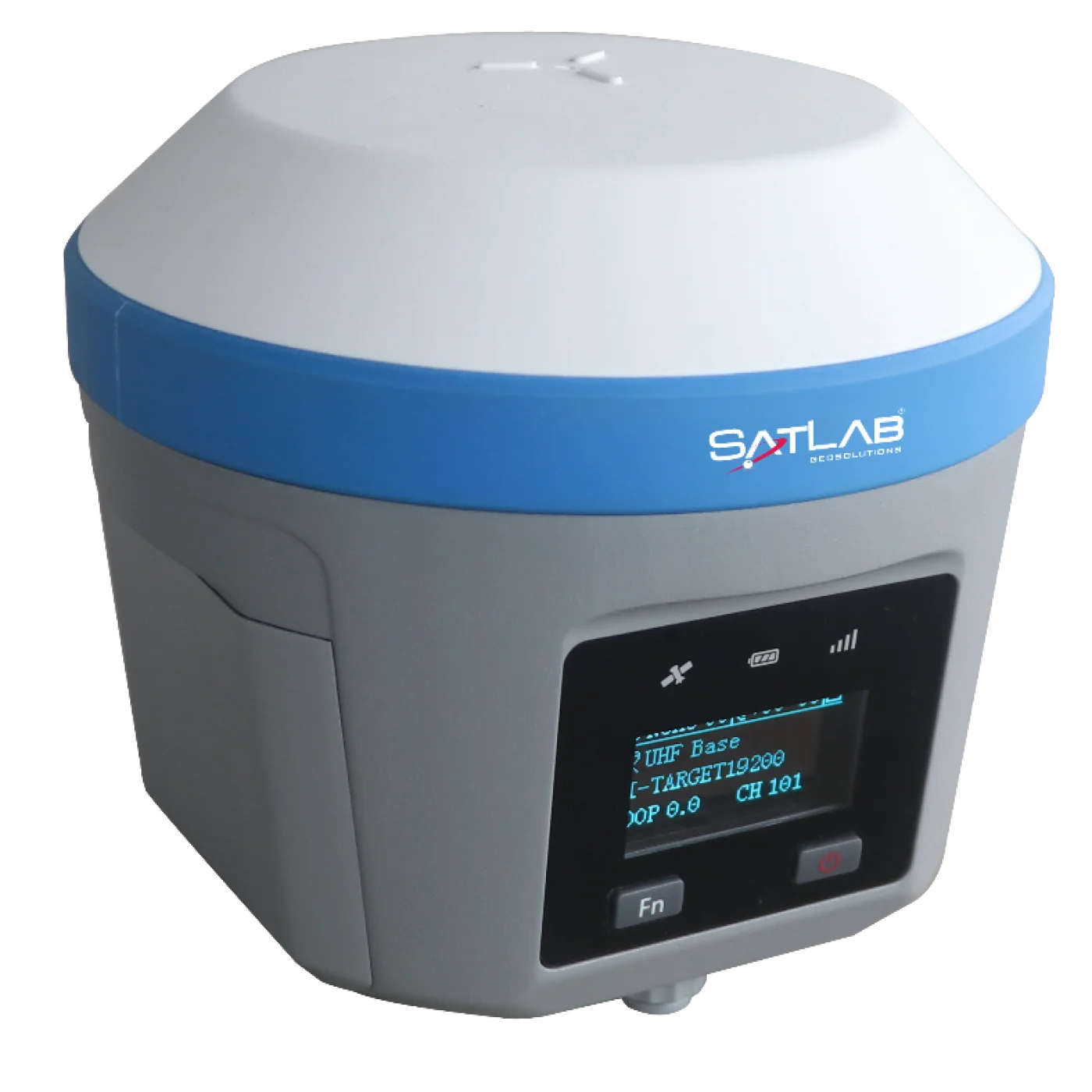

SatLab TR7
SatLab TR7 is a GNSS / RTK receiver released in 2019. Key specs: tracking channels 800, satellite systems supported 4, multi-band GNSS (L1 + L5/L2), battery life 10 h.
6.8Score
Positioning3.2
Maps & navigation8.8
Connectivity & safety5.9
Battery4.1
Durability3.9
price range—
- Year
- 2019
- Brand
- SatLab
- Popularity
- #237 of 301
- Model numbers
- TR7 GNSS Receiver
800Tracking channels
4Satellite systems supported
YesMulti-band GNSS (L1 + L5/L2)
10 hBattery life
IPx7Water protection (IPx)
1,350 gWeight
16 GBInternal storage
Spec guide
How it ranks among GNSS / RTK receivers
Tracking channels · 800Bottom 32%
Satellite systems supported · 4Bottom 38%
Battery life · 10 hBottom 40%
Water protection (IPx) · IPx7Bottom 43%
Weight · 1,350 gBottom 6%
Internal storage · 16 GBTop 47%
Compared with every model of this kind in the catalog.
compared with other GNSS / RTK receivers
Why is TR7 a good choice?
Internal storage: 16 GBbetter than 80% of GNSS / RTK receivers
Weak points
Water protection (IPx): IPx7worse than 93% of GNSS / RTK receivers
Battery life: 10 hworse than 84% of GNSS / RTK receivers
Satellite systems supported: 4worse than 97% of GNSS / RTK receivers
Weight: 1,350 gworse than 89% of GNSS / RTK receivers
Specifications
Full specifications
Satellite positioning
- Satellite systems supported
- 4
- Multi-band GNSS (L1 + L5/L2)
- Yes
- Frequency bands
- L1, L2, L5, E1, E5a, E5b, B1, B2, B3
- Tracking channels
- 800
- SBAS (WAAS / EGNOS)
- Yes
- RTK positioning
- Yes
- Static accuracy (horizontal)
- 2.5 mm
- Built-in UHF radio
- Yes
Maps & navigation
- Internal storage
- 16 GB
Connectivity & safety
- Wi-Fi
- Yes
- Bluetooth
- Yes
- Cellular modem (4G / LTE)
- Yes
- NFC
- Yes
Battery & power
- Battery life
- 10 h
- Battery capacity
- 6,800 mAh
- External power input
- 6 - 28V DC Input
Build & durability
- Protection rating
- IP67
- Water protection (IPx)
- IPx7
- Operating temperature (min)
- -40 °C
- Operating temperature (max)
- 75 °C
- Weight
- 1,350 g
- Housing material
- aluminium alloy
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
