SatLabGNSS / RTK receiver

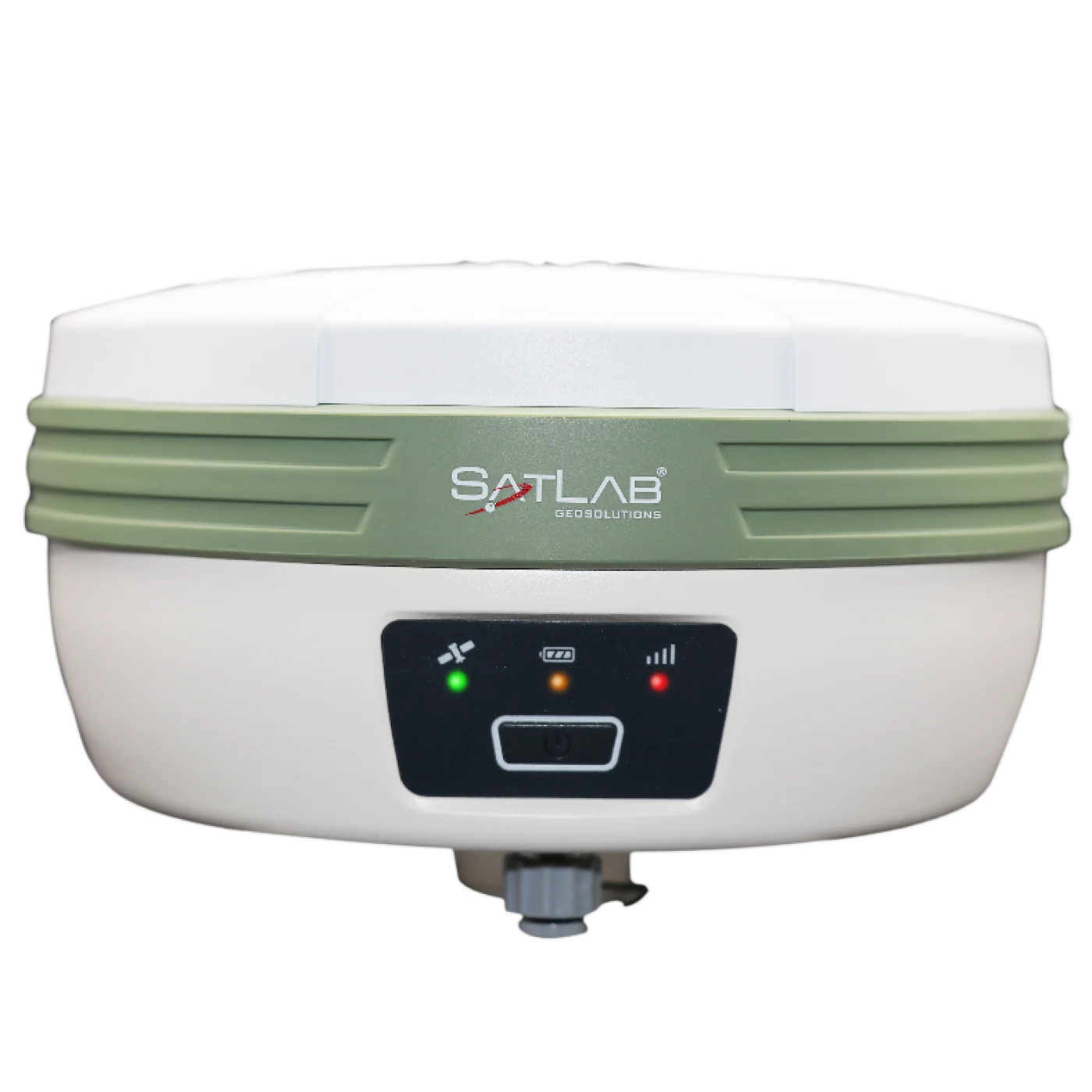

SatLab SL700
SatLab SL700 is a GNSS / RTK receiver released in 2018. Key specs: tracking channels 555, satellite systems supported 6, multi-band GNSS (L1 + L5/L2), water protection (IPx) IPx7.
5.3Score
Positioning7.6
Durability3.2
price range—
- Year
- 2018
- Brand
- SatLab
- Popularity
- #278 of 301
- Model numbers
- SL700 GNSS Receiver
555Tracking channels
6Satellite systems supported
YesMulti-band GNSS (L1 + L5/L2)
IPx7Water protection (IPx)
1,200 gWeight
Spec guide
How it ranks among GNSS / RTK receivers
Tracking channels · 555Bottom 19%
Satellite systems supported · 6Top 19%
Water protection (IPx) · IPx7Bottom 43%
Weight · 1,200 gBottom 10%
Compared with every model of this kind in the catalog.
compared with other GNSS / RTK receivers
Why is SL700 a good choice?
Satellite systems supported: 6better than 70% of GNSS / RTK receivers
Weak points
Water protection (IPx): IPx7worse than 93% of GNSS / RTK receivers
Weight: 1,200 gworse than 80% of GNSS / RTK receivers
Specifications
Full specifications
Satellite positioning
- Satellite systems supported
- 6
- Multi-band GNSS (L1 + L5/L2)
- Yes
- Frequency bands
- L1, L2, L5, E1, E5a, E5b, E6, B1, B2, B3, L-band
- Tracking channels
- 555
- GNSS engine
- NovAtel OEM729
- L-band / PPP corrections
- Yes
- Raw data logging (RINEX)
- Yes
Connectivity & safety
- Bluetooth
- Yes
Battery & power
- External power input
- 6~28V DC External Power
Build & durability
- Protection rating
- IP67
- Water protection (IPx)
- IPx7
- Operating temperature (min)
- -40 °C
- Operating temperature (max)
- 65 °C
- Weight
- 1,200 g
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
