ComNavGNSS / RTK receiver

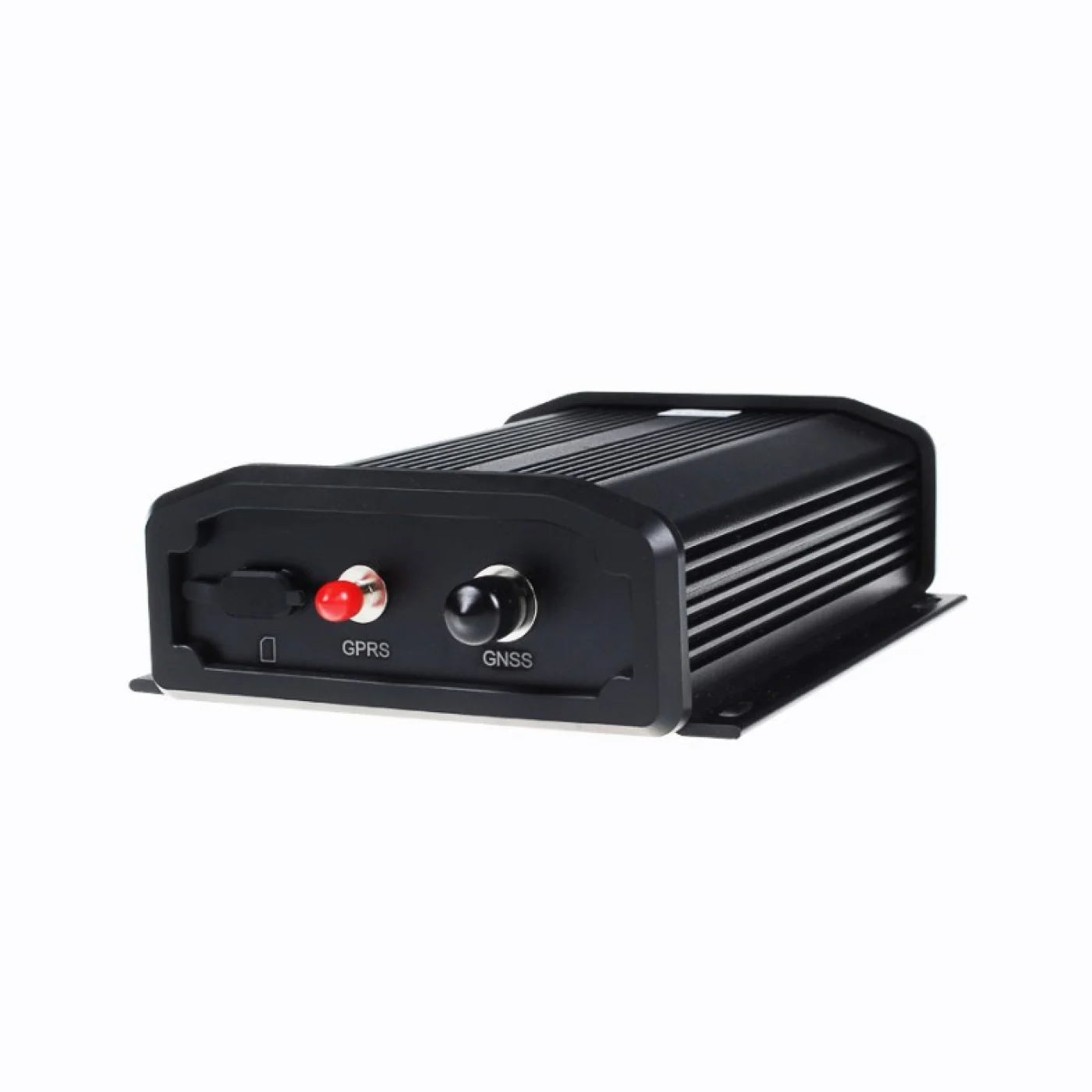

ComNav M300 Mini
ComNav M300 Mini is a GNSS / RTK receiver released in 2019. Key specs: RTK accuracy (horizontal) 8 mm, tracking channels 496, satellite systems supported 5, water protection (IPx) IPx7.
5.4Score
Positioning3.4
Durability5.9
price range—
- Year
- 2019
- Brand
- ComNav
- Popularity
- #229 of 301
- Model numbers
- M300 Mini GNSS Recevier
8 mmRTK accuracy (horizontal)
496Tracking channels
5Satellite systems supported
IPx7Water protection (IPx)
800 gWeight
Spec guide
How it ranks among GNSS / RTK receivers
RTK accuracy (horizontal) · 8 mmTop 47%
Tracking channels · 496Bottom 14%
Satellite systems supported · 5Top 48%
Water protection (IPx) · IPx7Bottom 43%
Weight · 800 gBottom 34%
Compared with every model of this kind in the catalog.
Specifications
Full specifications
Satellite positioning
- Satellite systems supported
- 5
- Tracking channels
- 496
- SBAS (WAAS / EGNOS)
- Yes
- RTK positioning
- Yes
- RTK accuracy (horizontal)
- 8 mm
- RTK accuracy (vertical)
- 15 mm
- Static accuracy (horizontal)
- 2.5 mm
- Built-in UHF radio
- Yes
Connectivity & safety
- Cellular modem (4G / LTE)
- Yes
Build & durability
- Protection rating
- IP67
- Water protection (IPx)
- IPx7
- Drop resistance
- 1 m
- Operating temperature (min)
- -40 °C
- Operating temperature (max)
- 75 °C
- Weight
- 800 g
- Width
- 142 mm
- Height
- 52 mm
- Depth
- 191 mm
- Housing material
- Rugged aluminum alloy
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
