TopconGNSS / RTK receiver

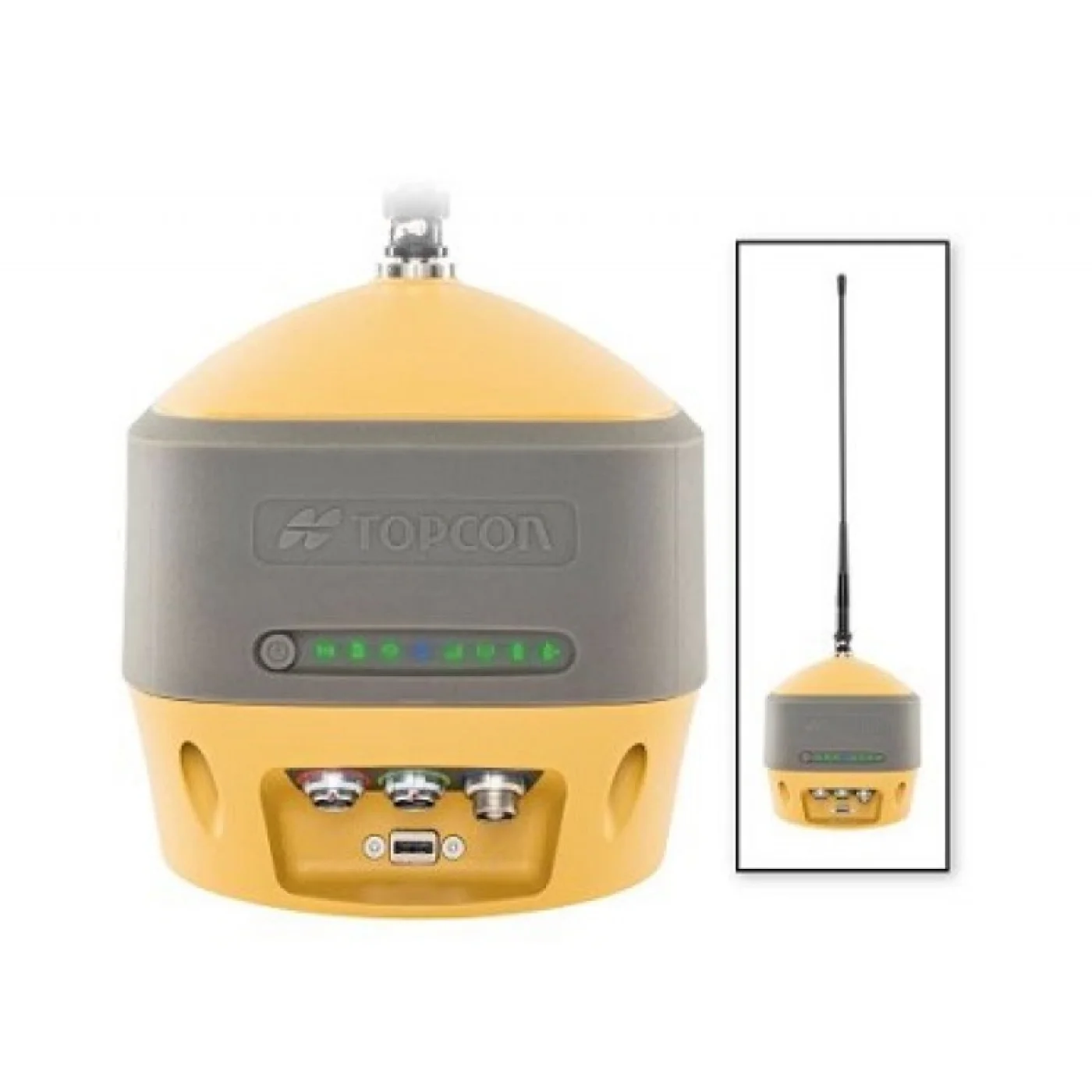

Topcon HiPer HR
Topcon HiPer HR is a GNSS / RTK receiver released in 2017. Key specs: RTK accuracy (horizontal) 5 mm, tracking channels 452, satellite systems supported 6, multi-band GNSS (L1 + L5/L2).
4.7Score
Positioning9.6
Maps & navigation4.9
Battery3.7
Durability5.0
price range—
- Year
- 2017
- Brand
- Topcon
- Popularity
- #301 of 301
5 mmRTK accuracy (horizontal)
452Tracking channels
6Satellite systems supported
YesMulti-band GNSS (L1 + L5/L2)
9 hBattery life
IPx7Water protection (IPx)
1,172 gWeight
8 GBInternal storage
Spec guide
How it ranks among GNSS / RTK receivers
RTK accuracy (horizontal) · 5 mmTop 2%
Tracking channels · 452Bottom 13%
Satellite systems supported · 6Top 19%
Battery life · 9 hBottom 35%
Water protection (IPx) · IPx7Bottom 43%
Weight · 1,172 gBottom 12%
Internal storage · 8 GBBottom 23%
Compared with every model of this kind in the catalog.
compared with other GNSS / RTK receivers
Why is HiPer HR a good choice?
RTK accuracy (horizontal): 5 mmbetter than 98% of GNSS / RTK receivers
Satellite systems supported: 6better than 70% of GNSS / RTK receivers
Weak points
Water protection (IPx): IPx7worse than 93% of GNSS / RTK receivers
Battery life: 9 hworse than 92% of GNSS / RTK receivers
Weight: 1,172 gworse than 79% of GNSS / RTK receivers
Specifications
Full specifications
Satellite positioning
- Satellite systems supported
- 6
- Multi-band GNSS (L1 + L5/L2)
- Yes
- Frequency bands
- L1, L2, L5, E1, E5a, E5b, E6, B1, B2, B3
- Tracking channels
- 452
- SBAS (WAAS / EGNOS)
- Yes
- RTK positioning
- Yes
- RTK accuracy (horizontal)
- 5 mm
- Raw data logging (RINEX)
- Yes
Maps & navigation
- Internal storage
- 8 GB
Connectivity & safety
- Wi-Fi
- Yes
Battery & power
- Battery life
- 9 h
- Battery capacity
- 5,200 mAh
- Hot-swappable batteries
- Yes
Build & durability
- Protection rating
- IP67
- Water protection (IPx)
- IPx7
- Operating temperature (min)
- -40 °C
- Operating temperature (max)
- 80 °C
- Weight
- 1,172 g
- Width
- 115 mm
- Height
- 132 mm
- Depth
- 115 mm
- Housing material
- Aluminum-alloy housing
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
