TrimbleGNSS / RTK receiver

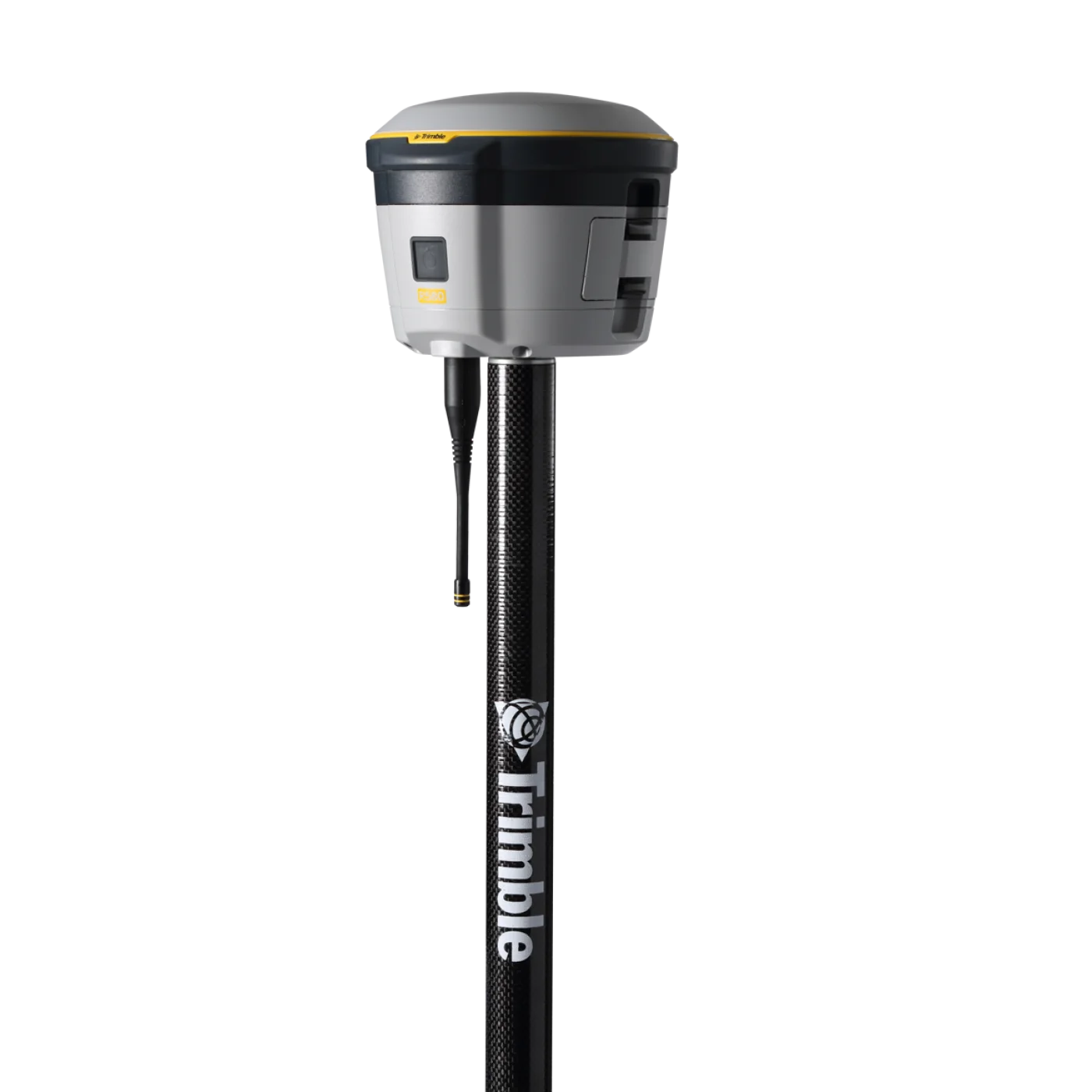

Trimble R580
Trimble R580 is a GNSS / RTK receiver released in 2023. Key specs: RTK accuracy (horizontal) 10 mm, tracking channels 336, satellite systems supported 5, multi-band GNSS (L1 + L5/L2).
3.6Score
Positioning2.3
Connectivity & safety5.9
Battery2.2
Durability2.1
price range—
- Year
- 2023
- Brand
Trimble- Popularity
- #146 of 301
- Model numbers
- Trimble R580
10 mmRTK accuracy (horizontal)
336Tracking channels
5Satellite systems supported
YesMulti-band GNSS (L1 + L5/L2)
5 hBattery life
IPx5Water protection (IPx)
1,080 gWeight
Spec guide
How it ranks among GNSS / RTK receivers
RTK accuracy (horizontal) · 10 mmBottom 8%
Tracking channels · 336Bottom 7%
Satellite systems supported · 5Bottom 40%
Battery life · 5 hBottom 24%
Water protection (IPx) · IPx5Bottom 3%
Weight · 1,080 gBottom 18%
Compared with every model of this kind in the catalog.
Specifications
Full specifications
Satellite positioning
- Satellite systems supported
- 5
- Multi-band GNSS (L1 + L5/L2)
- Yes
- Frequency bands
- L1, L2, L5
- Tracking channels
- 336
- SBAS (WAAS / EGNOS)
- Yes
- RTK positioning
- Yes
- RTK accuracy (horizontal)
- 10 mm
- Static accuracy (horizontal)
- 10 mm
- Built-in UHF radio
- Yes
- L-band / PPP corrections
- Yes
Connectivity & safety
- Wi-Fi
- Yes
- Bluetooth
- Yes
Battery & power
- Battery life
- 5 h
Build & durability
- Protection rating
- IP65
- Water protection (IPx)
- IPx5
- MIL-STD-810
- Yes
- Operating temperature (min)
- -20 °C
- Operating temperature (max)
- 55 °C
- Weight
- 1,080 g
- Width
- 140 mm
- Height
- 114 mm
- Housing material
- Plastic with metal endoskeleton
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
