- M10 Mini vs M300 Mini

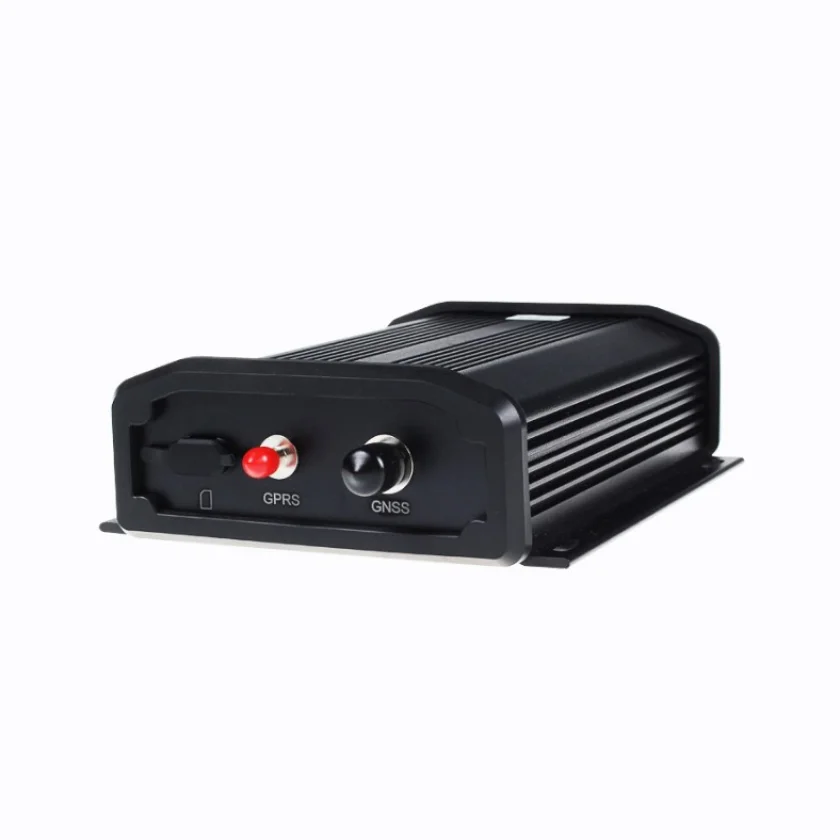

ComNav M10 Mini vs ComNav M300 Mini
What M10 Mini does better (3) and where M300 Mini wins (2) — every spec side by side.
Dimensions
Size comparison
M10 MiniM300 Mini
| M10 Mini | M300 Mini | Difference | |
|---|---|---|---|
| Height | 130 mm | 52 mm | +78 mm |
| Width | 64 mm | 142 mm | −78 mm |
| Depth | 26 mm | 191 mm | −165 mm |
| Weight | 175 g | 800 g | −625 g |
Drawn to the same scale from the official dimensions (front and side).
Why is M10 Mini better than M300 Mini?
- Weight175 g vs 800 g4.6×
- Satellite systems supported6 vs 5+20%
- Tracking channels956 vs 496+93%
Why is M300 Mini better than M10 Mini?
- Operating temperature (min)-20 °C vs -40 °C+-50%
- Operating temperature (max)60 °C vs 75 °C+25%
Specifications
Side by side
| Satellite positioning | ||
| Satellite systems | GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC (IRNSS) | GPS, GLONASS, Galileo, BeiDou, QZSS |
| Satellite systems supported | 6 | 5 |
| Multi-band GNSS (L1 + L5/L2) | Yes | — |
| Frequency bands | L1, L2, L5, E1, E5a, E5b, E6, B1, B2, B3 | — |
| Tracking channels | 956 | 496 |
| SBAS (WAAS / EGNOS) | Yes | Yes |
| RTK positioning | Yes | Yes |
| RTK accuracy (horizontal) | 8 mm | 8 mm |
| RTK accuracy (vertical) | — | 15 mm |
| Static accuracy (horizontal) | — | 2.5 mm |
| Correction sources | NTRIP (internet), Cellular modem, SBAS | NTRIP (internet), UHF radio, Cellular modem, SBAS |
| Built-in UHF radio | — | Yes |
| Connectivity & safety | ||
| Bluetooth | Yes | — |
| Cellular modem (4G / LTE) | Yes | Yes |
| Battery & power | ||
| Battery life | 6 h | — |
| Battery capacity | 2,600 mAh | — |
| Build & durability | ||
| Protection rating | IP67 | IP67 |
| Water protection (IPx) | IPx7 | IPx7 |
| Drop resistance | 1 m | 1 m |
| Operating temperature (min) | -20 °C | -40 °C |
| Operating temperature (max) | 60 °C | 75 °C |
| Weight | 175 g | 800 g |
| Width | 64 mm | 142 mm |
| Height | 130 mm | 52 mm |
| Depth | 26 mm | 191 mm |
| Housing material | Aluminum-magnesium alloy | Rugged aluminum alloy |
