- M10 Mini vs E500

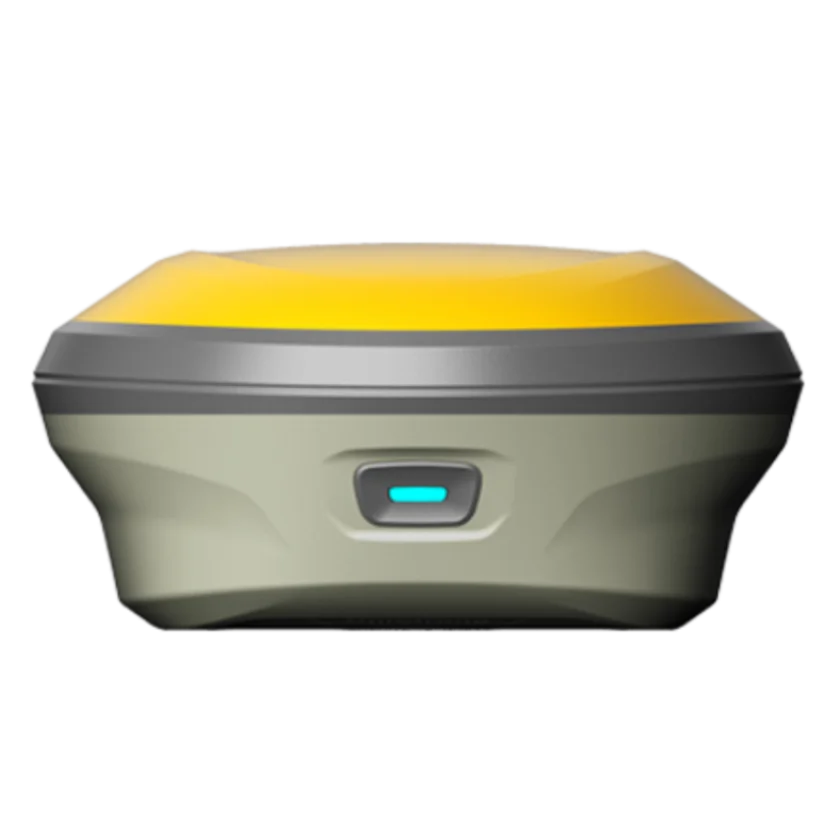

ComNav M10 Mini vs eSurvey E500
What M10 Mini does better (3) and where E500 wins (5) — every spec side by side.
Dimensions
Size comparison
M10 MiniE500
| M10 Mini | E500 | Difference | |
|---|---|---|---|
| Height | 130 mm | 74 mm | +56 mm |
| Width | 64 mm | 148 mm | −84 mm |
| Depth | 26 mm | 148 mm | −122 mm |
| Weight | 175 g | 1,060 g | −885 g |
Drawn to the same scale from the official dimensions (front and side).
Why is M10 Mini better than E500?
- Weight175 g vs 1,060 g6.1×
- Multi-band GNSS (L1 + L5/L2)Yes · E500: No
- Tracking channels956 vs 800+20%
Why is E500 better than M10 Mini?
- Battery life6 h vs 12 h2×
- Drop resistance1 m vs 2 m2×
- Operating temperature (min)-20 °C vs -40 °C+-50%
- Battery capacity2,600 mAh vs 4,800 mAh+85%
- Operating temperature (max)60 °C vs 65 °C+8%
Specifications
Side by side
| Satellite positioning | ||
| Satellite systems | GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC (IRNSS) | GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC (IRNSS) |
| Satellite systems supported | 6 | 6 |
| Multi-band GNSS (L1 + L5/L2) | Yes | No |
| Frequency bands | L1, L2, L5, E1, E5a, E5b, E6, B1, B2, B3 | L-band |
| Tracking channels | 956 | 800 |
| SBAS (WAAS / EGNOS) | Yes | Yes |
| RTK positioning | Yes | Yes |
| RTK accuracy (horizontal) | 8 mm | 8 mm |
| Static accuracy (horizontal) | — | 2 mm |
| Correction sources | NTRIP (internet), Cellular modem, SBAS | NTRIP (internet), UHF radio, Cellular modem, L-band / PPP, SBAS |
| Built-in UHF radio | — | Yes |
| L-band / PPP corrections | — | Yes |
| Raw data logging (RINEX) | — | Yes |
| Maps & navigation | ||
| Internal storage | — | 8 GB |
| Connectivity & safety | ||
| Bluetooth | Yes | Yes |
| Cellular modem (4G / LTE) | Yes | Yes |
| USB-C | — | Yes |
| Battery & power | ||
| Battery life | 6 h | 12 h |
| Battery capacity | 2,600 mAh | 4,800 mAh |
| External power input | — | 5-pin lemo, 9~28 VDC |
| Build & durability | ||
| Protection rating | IP67 | IP67 |
| Water protection (IPx) | IPx7 | IPx7 |
| Drop resistance | 1 m | 2 m |
| Operating temperature (min) | -20 °C | -40 °C |
| Operating temperature (max) | 60 °C | 65 °C |
| Weight | 175 g | 1,060 g |
| Width | 64 mm | 148 mm |
| Height | 130 mm | 74 mm |
| Depth | 26 mm | 148 mm |
| Housing material | Aluminum-magnesium alloy | Magnesium Alloy |
